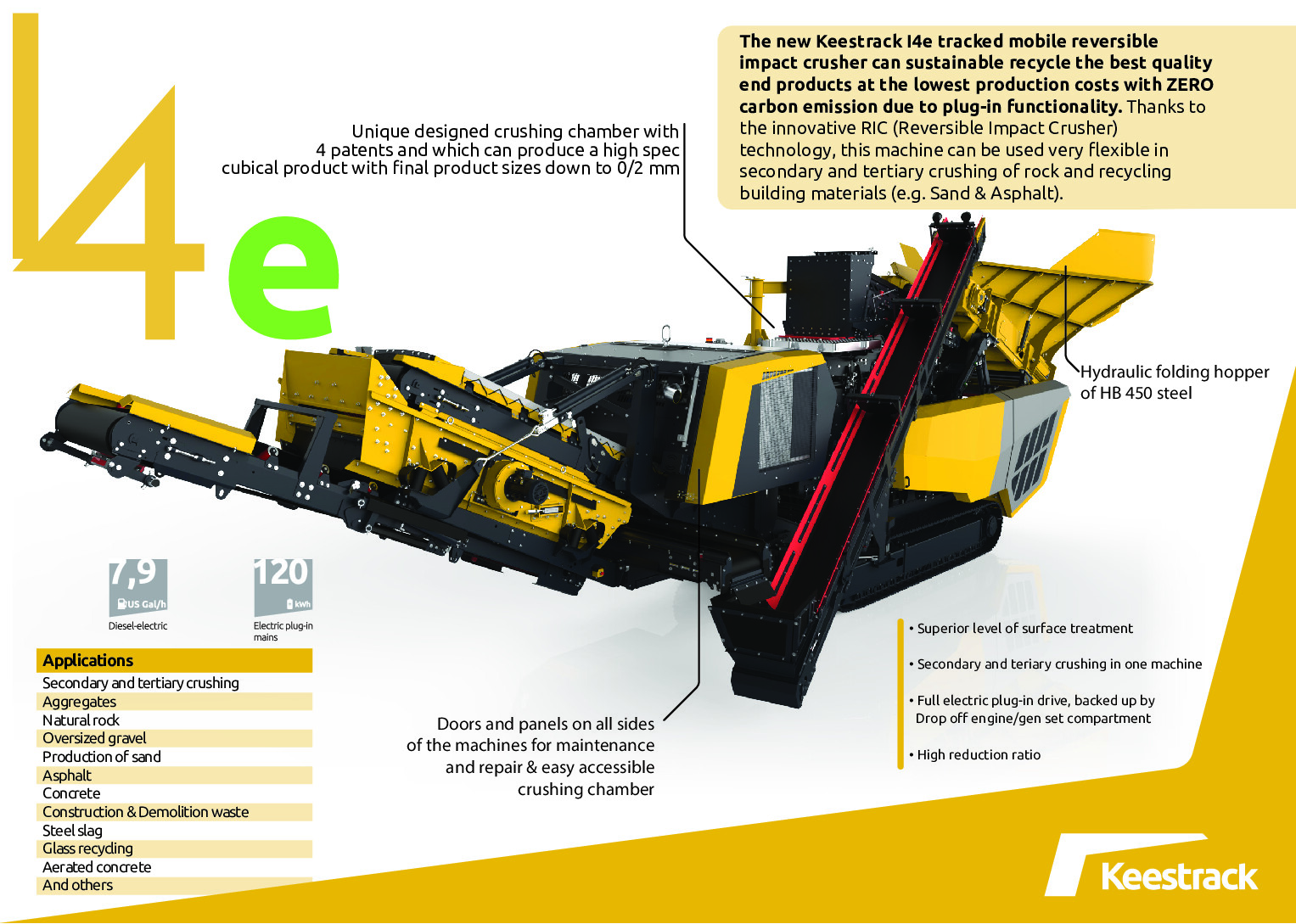

Introducing the Keestrack I4e Crusher, a revolutionary tracked mobile reversible horizontal impact crusher designed for sustainable recycling and high-quality end products. This innovative machine features the unique RIC (Reversible Impact Crusher) technology, making it highly versatile for secondary and tertiary crushing of rock and recycling building materials like sand and asphalt.

Features

  • The Keestrack I4e tracked mobile reversible horizontal impact crusher can sustainably produce the best quality end products at the lowest production costs with zero carbon emission due to plug-in functionality
  • Due to the innovative Reversible Impact Crusher technology, it can be used in secondary and tertiary crushing
  • The I4e is an alternative to mobile cones or vertical impact crushers. It has less wear, better quality of end products (grain shape), and significant energy savings, from 30% to 40% compared to cone and VSI impact crushers
  • The I4e allows a feed size of up to 10” (250 mm) and ensures consistently high-quality end products of up to 0/2 mm in closed circuit. Producing very small fractions is possible with only one machine
  • Electric drive system: plugged in, backed up by a drop-off engine/gen set unit which can generate sufficient electric power to drive several e-driven machines
  • Hopper of 10.5-yard³ (8m³)
  • Heavy-duty plate apron feeder
  • Reversible belt feeder with metal detector
  • Foldable stockpile conveyor belt
  • Reversible horizontal impact crusher inlet opening 9.8”-17.7” (height adjustable) 26.3” width (250-450 x 670 mm)
  • Rotor diameter 3’7” (1.100 mm), rotor width 2’2” (650 mm)
  • Drop off engine/gen set, e-drive: plug-in and plug-out
  • Optional single deck after screen 4’8” x 10’2” (3.100 x 1.400 mm), with closed circuit return conveyor
  • Capacity up to 275 TPH
  • 2-speed track drive

Applications

  • Secondary and tertiary crushing
  • Aggregates
  • Natural rock
  • Oversized gravel
  • Production of sand
  • Asphalt
  • Concrete
  • Construction and demolition waste
  • Steel slag
  • Glass recycling
  • Aerated concrete

Specifications

  • Keestrack i4e Reversible Impact Crusher
