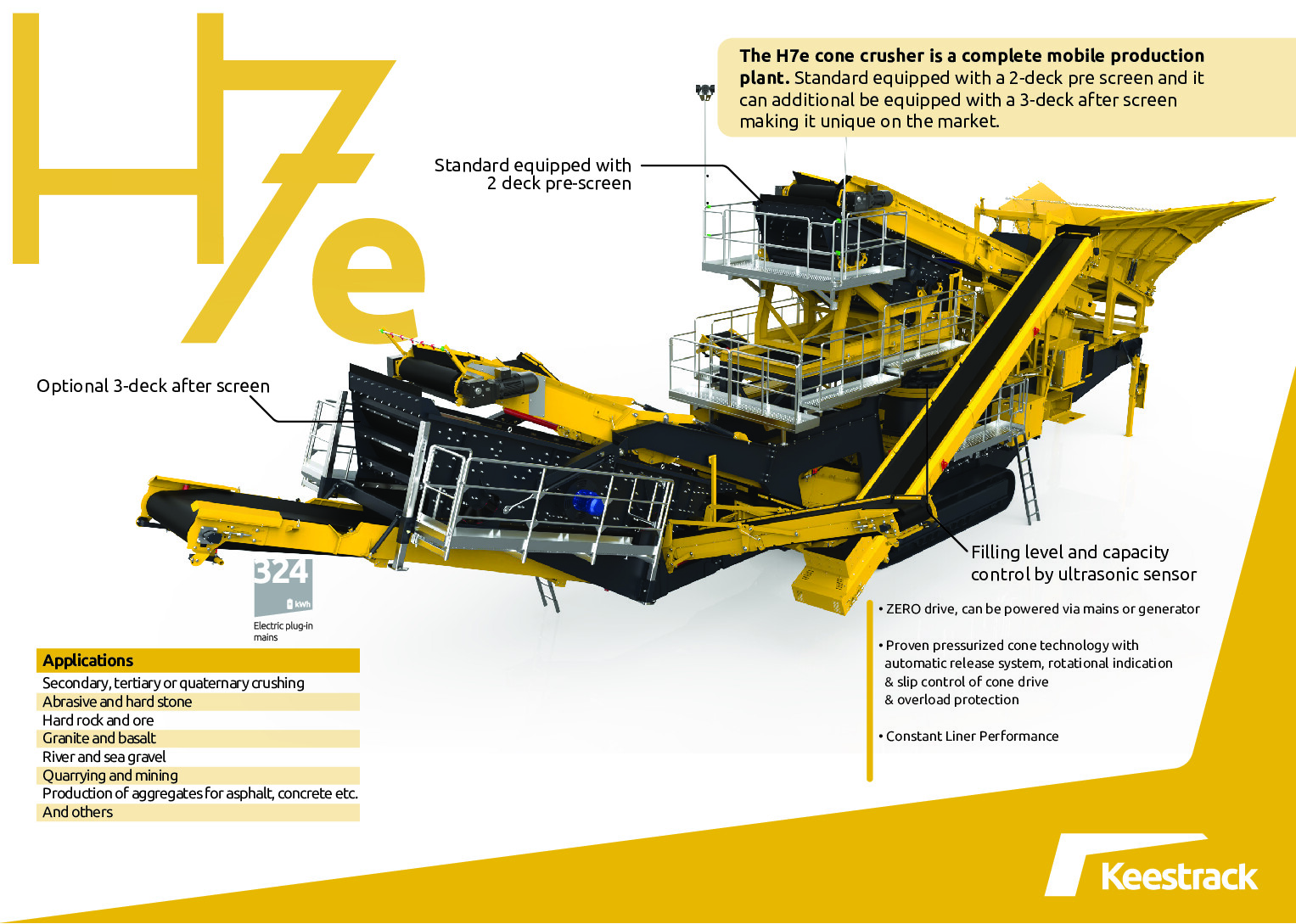

The track-mounted Keestrack H7e is the largest mobile cone crusher available, featuring Keestrack’s full electric or hybrid powertrain. Engineered to crush the toughest rock and ore, it delivers optimal product shape with maximum cost efficiency. It excels in various applications, including abrasive and hard stone like granite and basalt, quarrying and mining, and producing aggregates for asphalt and concrete.

Features

  • Can be used in secondary crushing
  • Designed to crush the toughest of rock and ore
  • Feed size up to 10” (250mm)
  • C.S.S. min. - max. 1”-2” (16 - 48mm) depending on crushing chamber configuration
  • Capacity up to 415 tonnes/hour (457 sT/h)
  • Hopper 10 yard³ (8 m³)
  • Other configurations possible with different crushing chambers
  • ZERO electric drive
  • 2-speed track drive
  • Optional 2-deck pre-screen: Top: 3.000 mm x 1.500 mm, bottom 2.400 mm x 1.500 mm (9’8” x 4’9”)
  • Optional 3-deck screen: Top: 4.640 mm x 1.800 mm, Middle and bottom 4.500 mm x 1.800 mm (14'9" x 5'10")
  • Effective screen area 87.1877ft (9.1m²) on each deck, with return conveyor
  • Best product shape
  • Extensive option list to configure to your application
  • Can be powered by Diesel/Gen Set M7

Applications

  • Abrasive and hard stone
  • Hard rock and ore
  • Granite and basalt
  • Primary, secondary, tertiary, or quaternary crushing
  • River and sea gravel
  • Quarrying and mining
  • Production of aggregates for asphalt, concrete, and others

Specifications

  • Keestrack H7e Cone Crusher

Gallery

Keestrack H7e Cone Crusher
Keestrack H7e Cone Crusher
Keestrack H7e Cone Crusher
Keestrack H7e Cone Crusher
Keestrack H7e Cone Crusher
Keestrack H7e Cone Crusher
Keestrack H7e Cone Crusher
