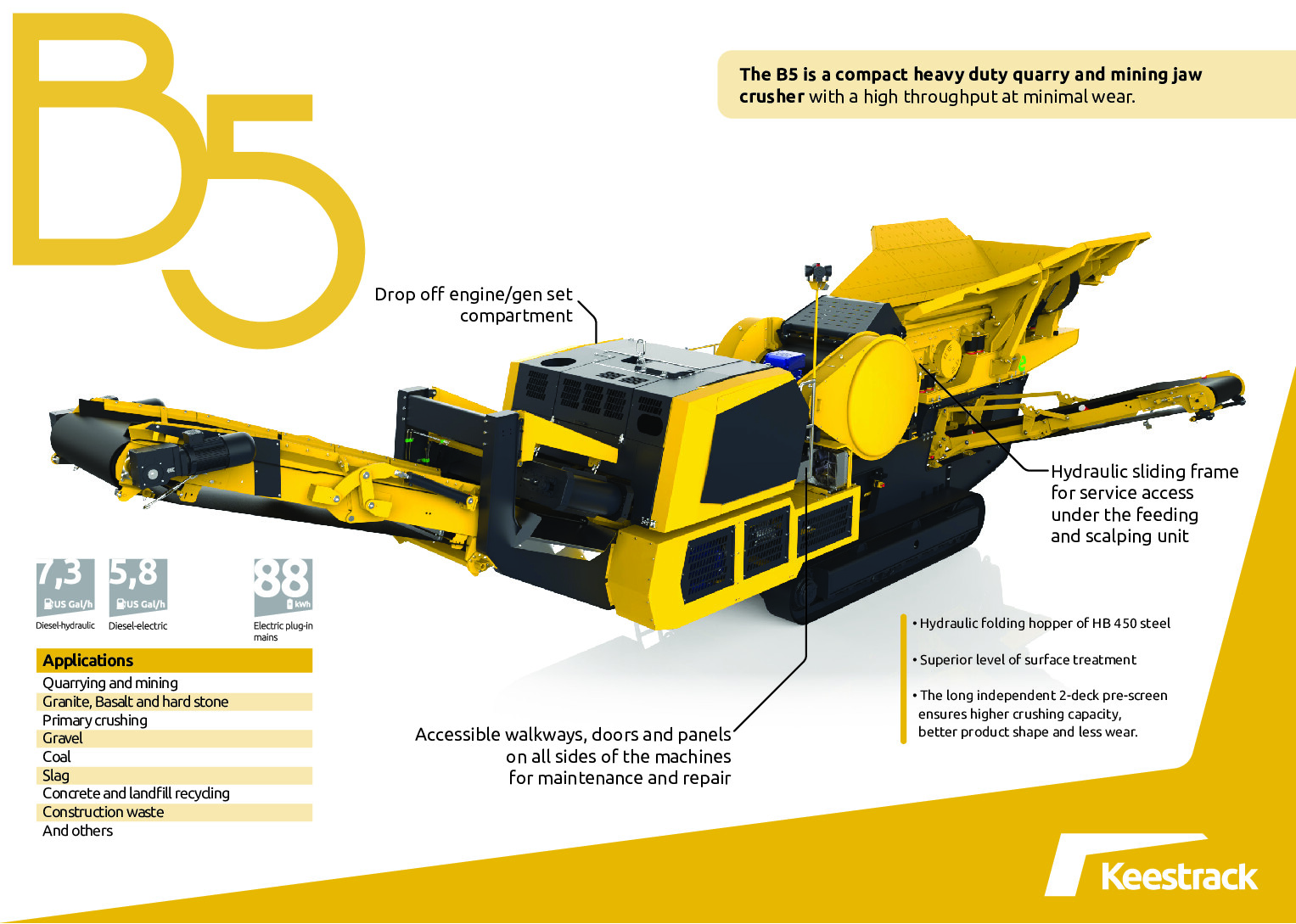

Engineered for the toughest rock in quarrying and mining applications, the B5 mobile track-mounted jaw crusher features a wedge system and a high-stroke jaw.

Available in both diesel-hydraulic and plug-in electric hybrid versions with a detachable drop-off engine module, the B5 can crush feed up to 24 inches (600 mm) with capacities up to 440 TPH.

It includes a double-deck pre-screen that reduces fines from entering the chamber, resulting in less wear and improved product quality. The hydraulic sliding frame enhances serviceability, while the load- sensing hydraulic system cuts fuel usage by up to 25%.

Features

  • Feed size up to 24” (600 mm)
  • Independent double deck vibrating pre-screen 3’3” x 7’7” (1.000 x 2.300mm)
  • Feed opening 29” x 44” (750 x 1.110mm)
  • C.S.S. min. - max. 1 3/4” - 7” (45 - 180 mm)
  • Capacity up to 440 TPH
  • Full hybrid electric-driven, energy-saving version available
  • Hydraulic sliding frame for service access under the feeding and scalping unit
  • Optional single deck after screen 9'2" x 3'11" (2.800 x 1.200 mm)
  • Intake hopper suitable for wheel loader and excavator, 6.5-yard³ (5 m³)
  • Smart sequential auto start/stop from remote
  • Ability to track while producing
  • 2-speed track drive
  • Extensive option list to configure to your application
  • Removable engine /generator compartment on full hybrid e version

Applications

  • Quarrying and mining
  • Granite, Basalt and hard stone
  • Primary crushing
  • Gravel
  • Coal, slag and others

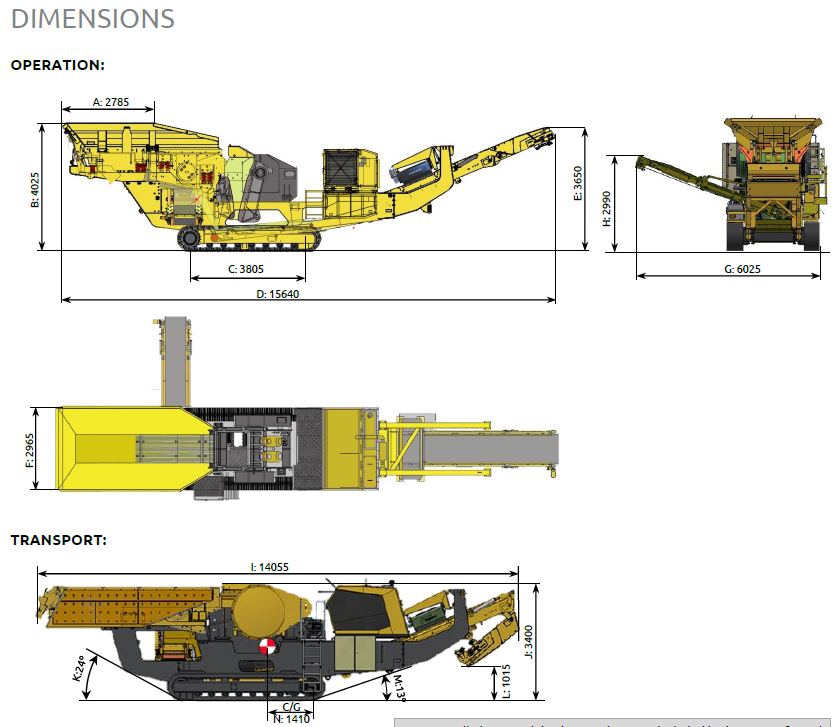

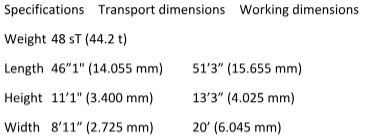

Specifications

Gallery

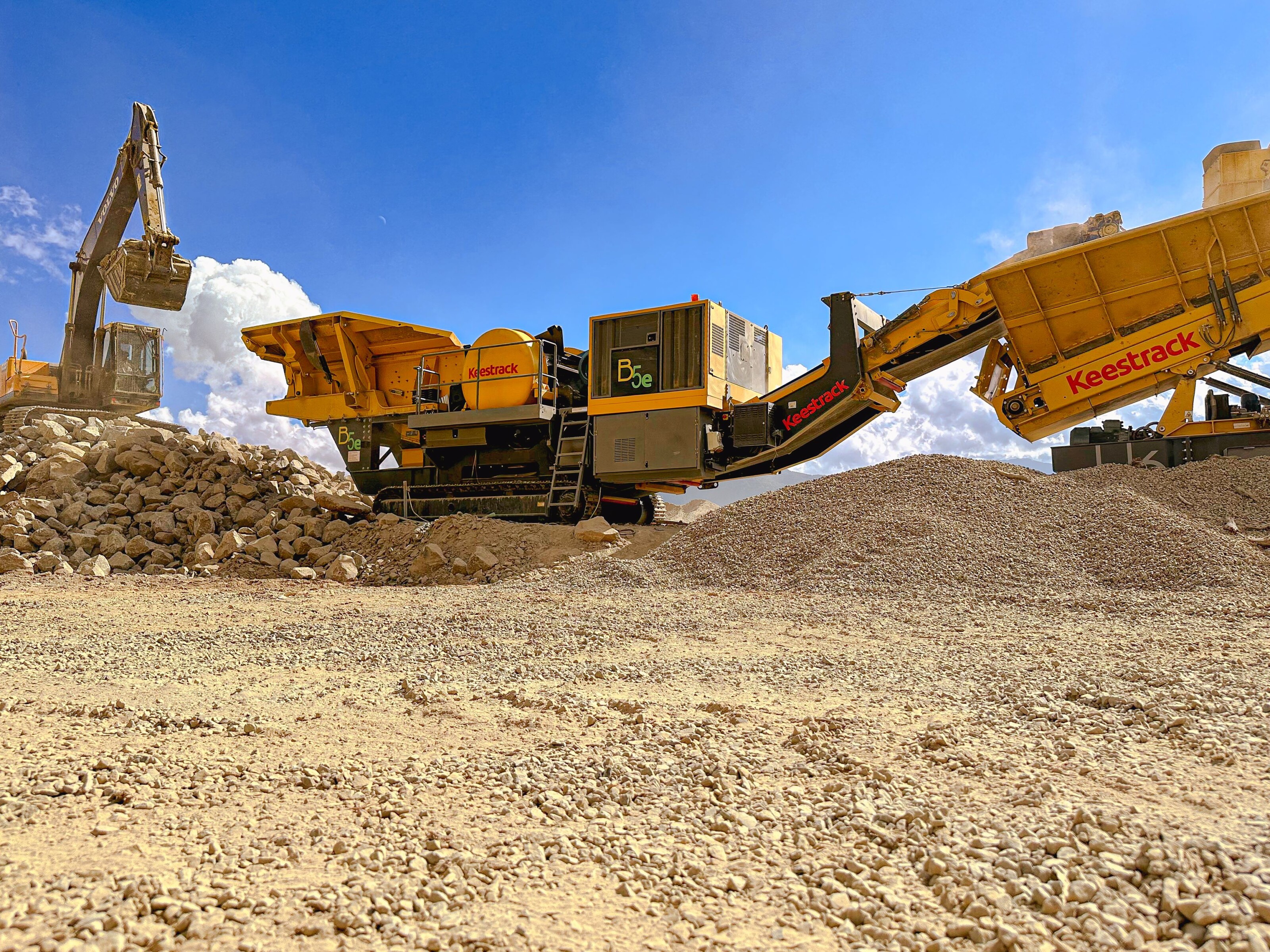

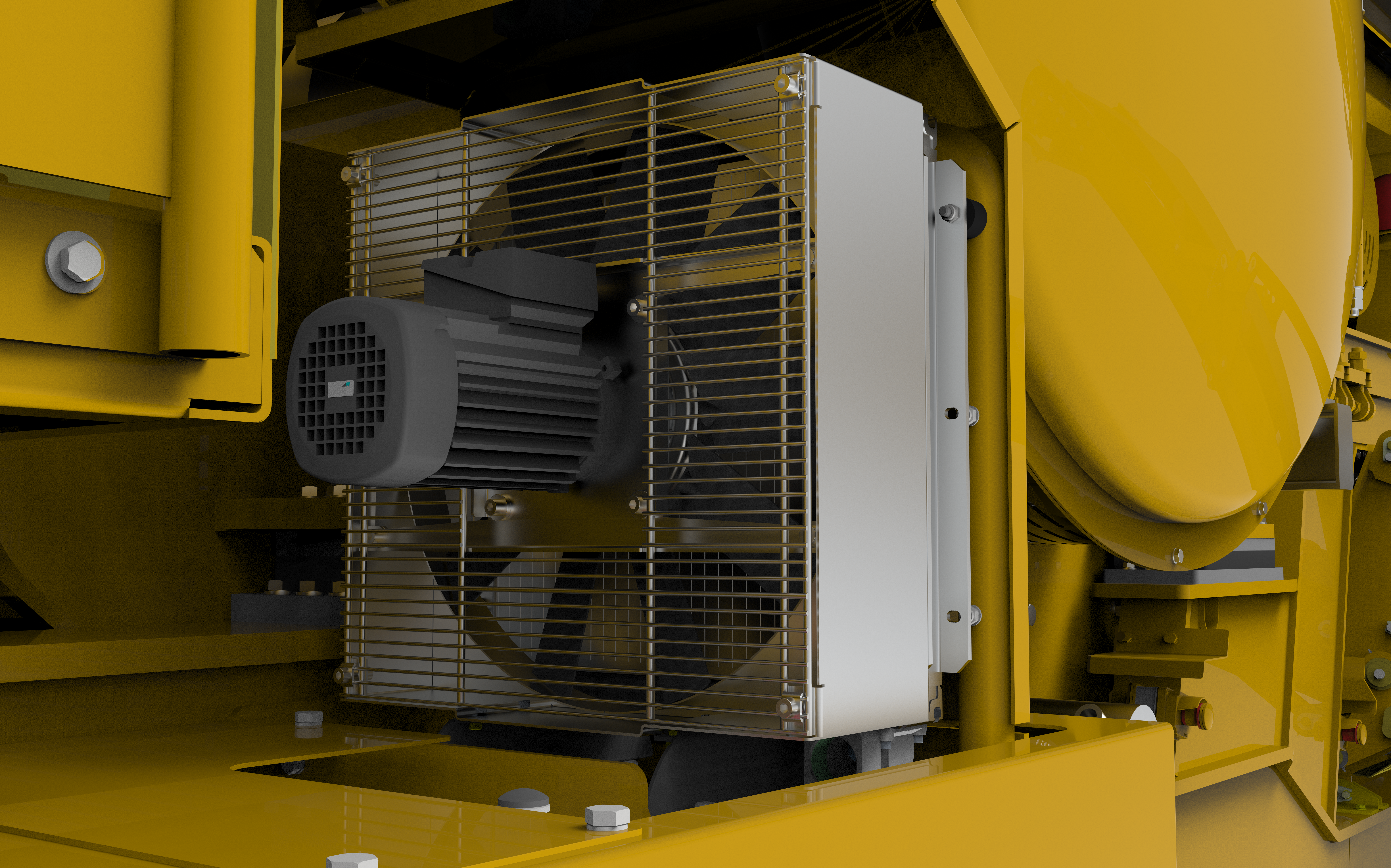

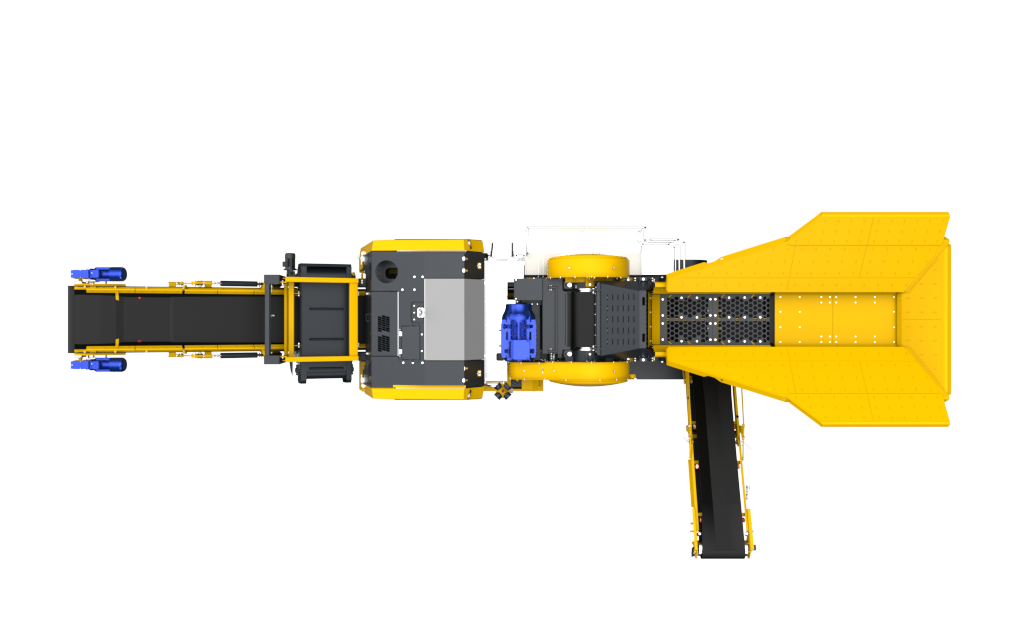

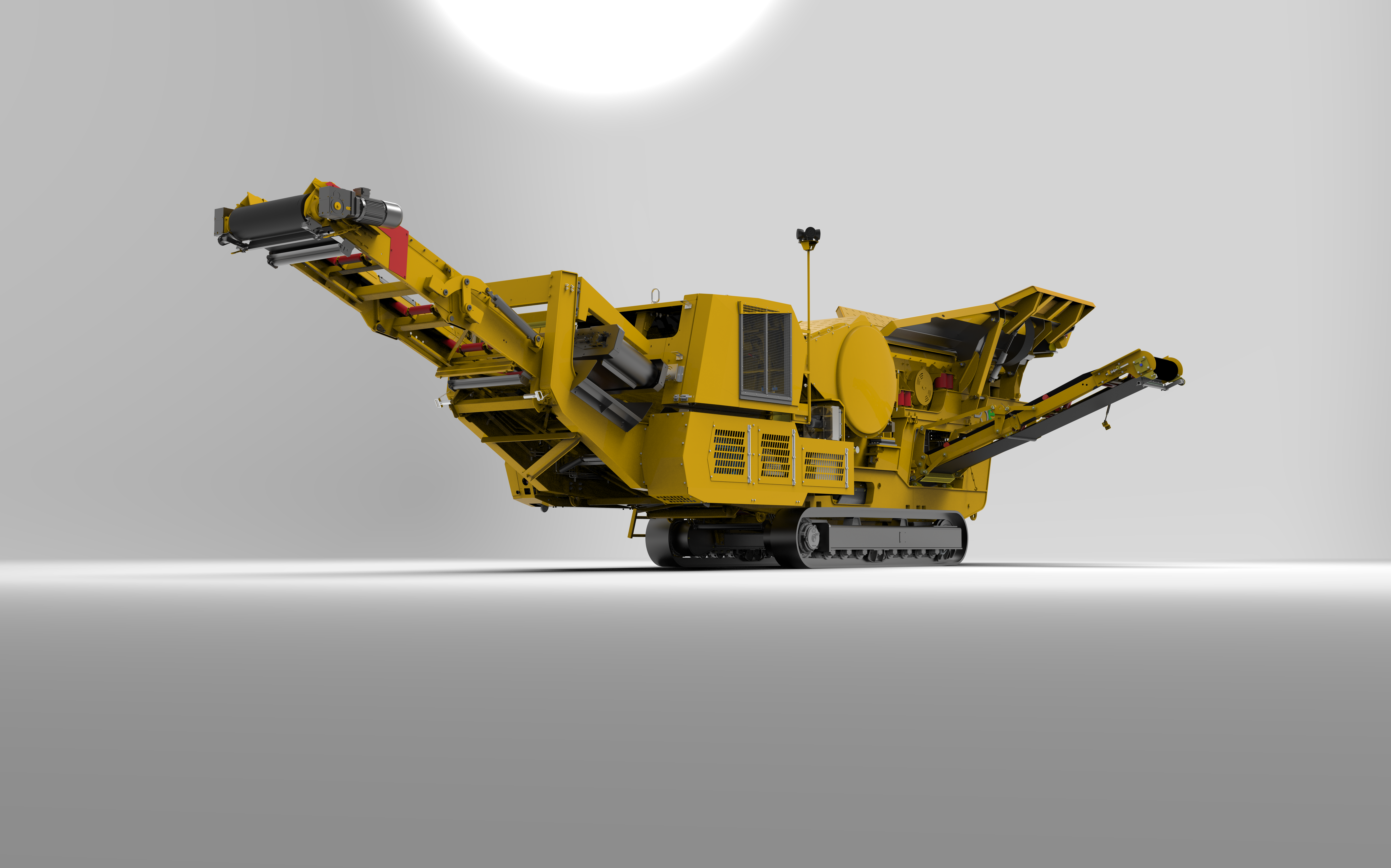

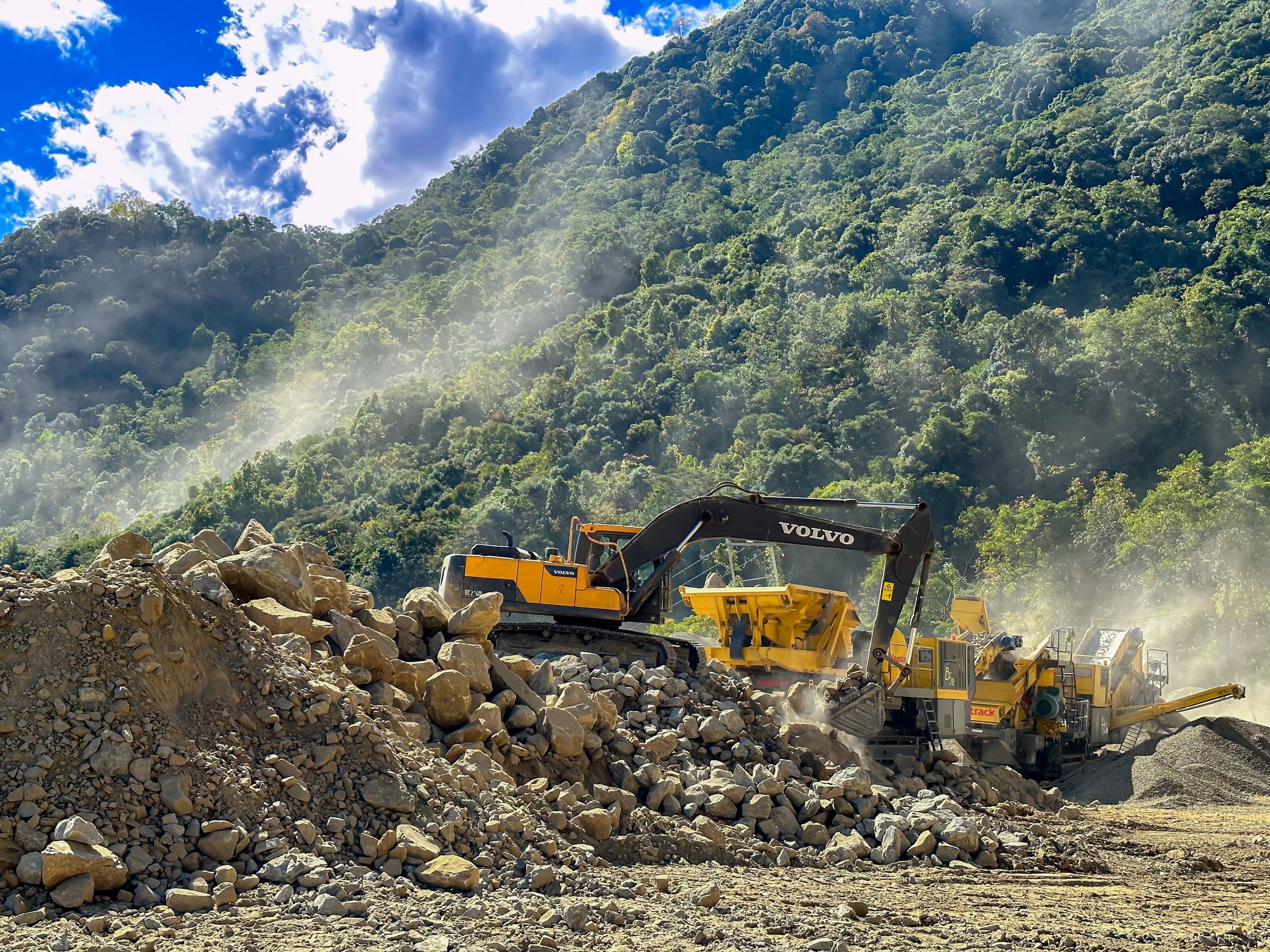

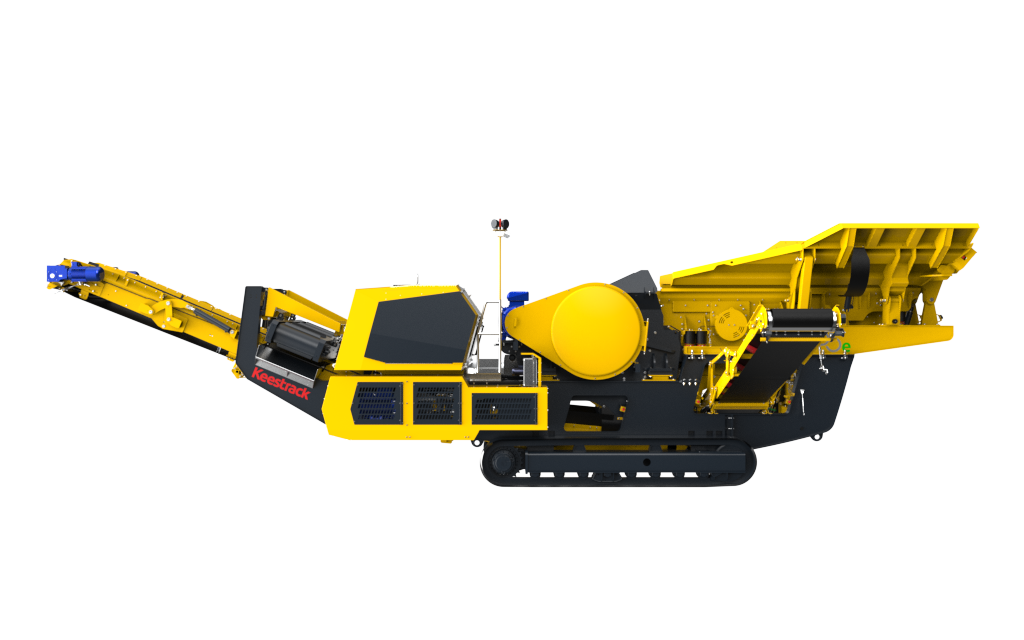

Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
Keestrack B5 Jaw Crusher
